ENERGY SAVING
It enters into sleeping mode when the surrounding lighting is dark.
The system's boiler will be off in the mode. It wakes up when any button is touched.
Blanching, boiling, brewing-up, sterilizing, cleaning. Tea, coffee, broccoli, spaghetti, eggs. Morning cuppa, baby's bottle, midnight feast. The more you use it, the more things you think of to do with it.
It enters into sleeping mode when the surrounding lighting is dark.
The system's boiler will be off in the mode. It wakes up when any button is touched.

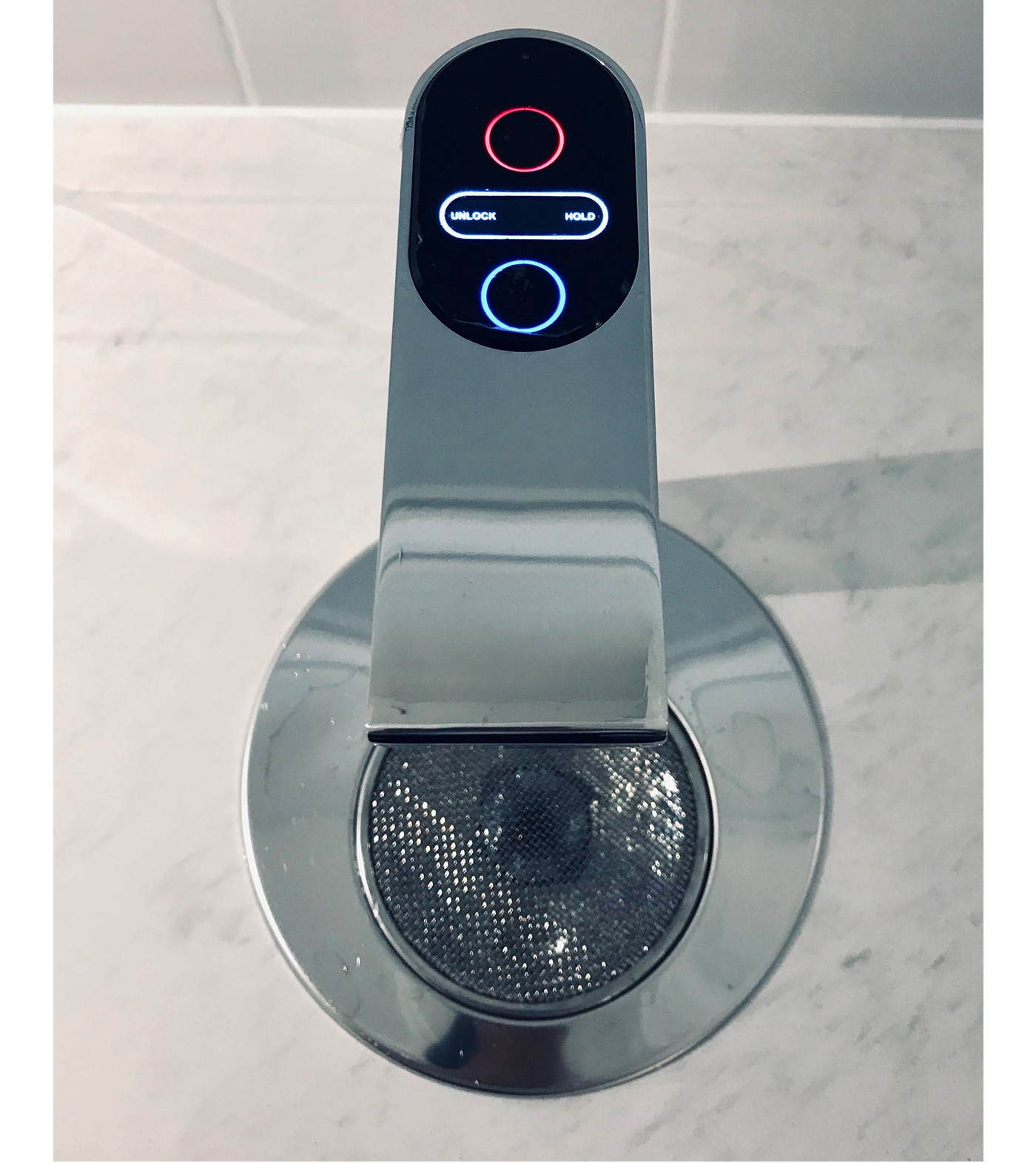

( with Unlock & Hold selective buttons )
a touch of any button to stop
release when filled

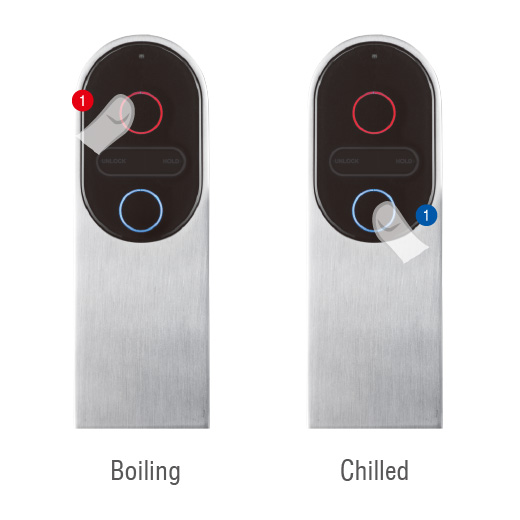

( with Red & Blue buttons only )
Hot water delays seconds ( 1 - 5 settable ) to outflow
release when filled

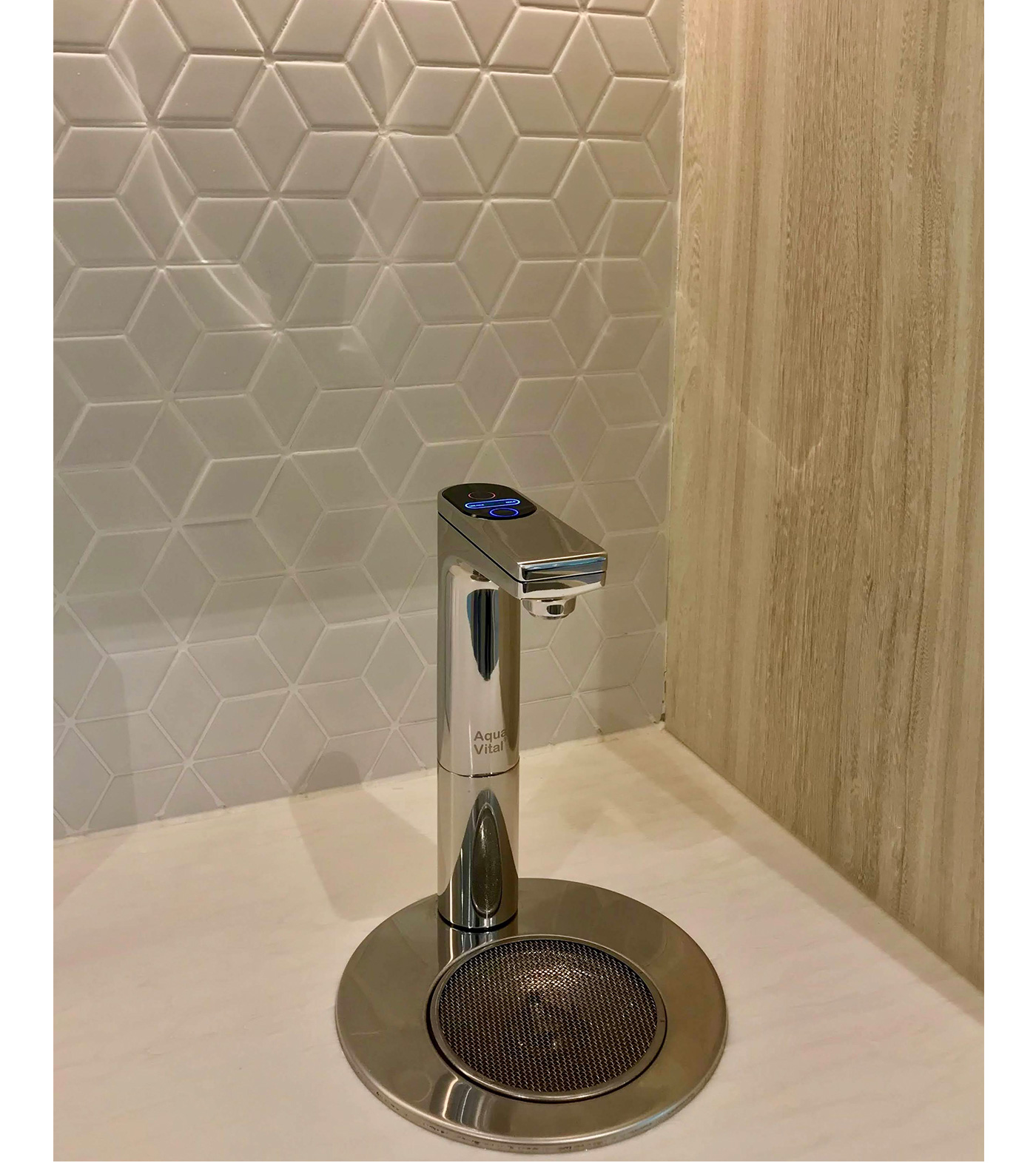

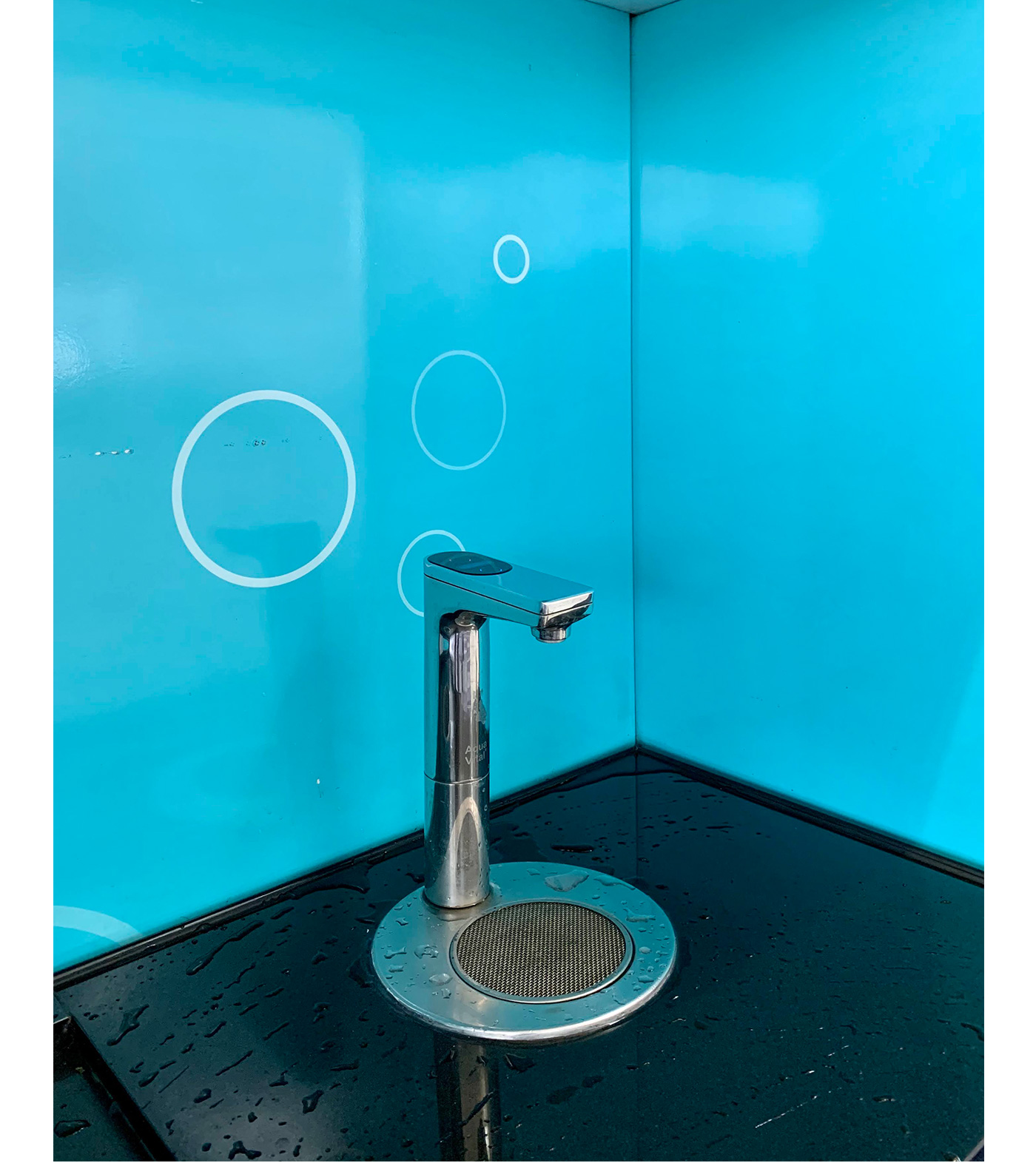

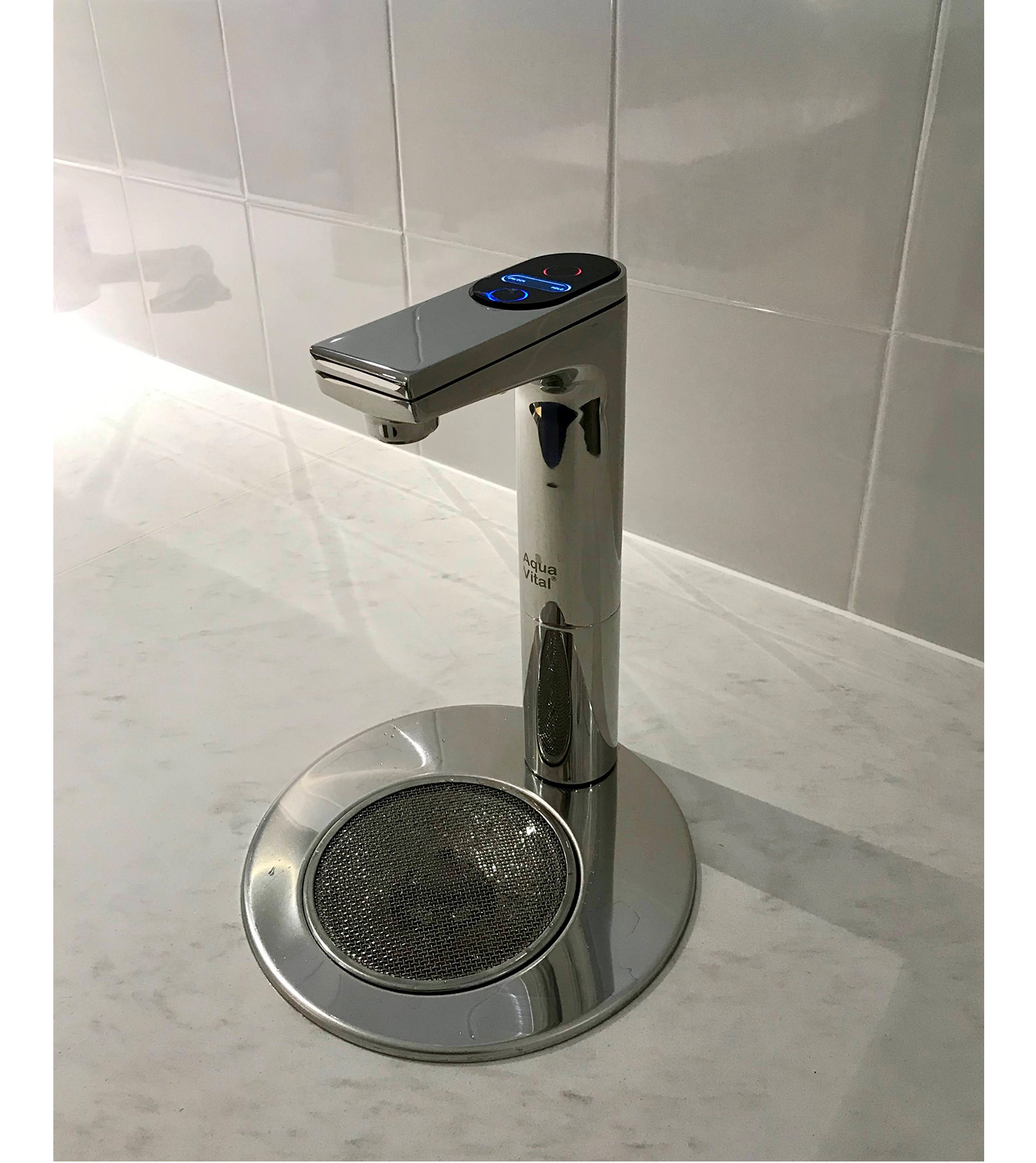

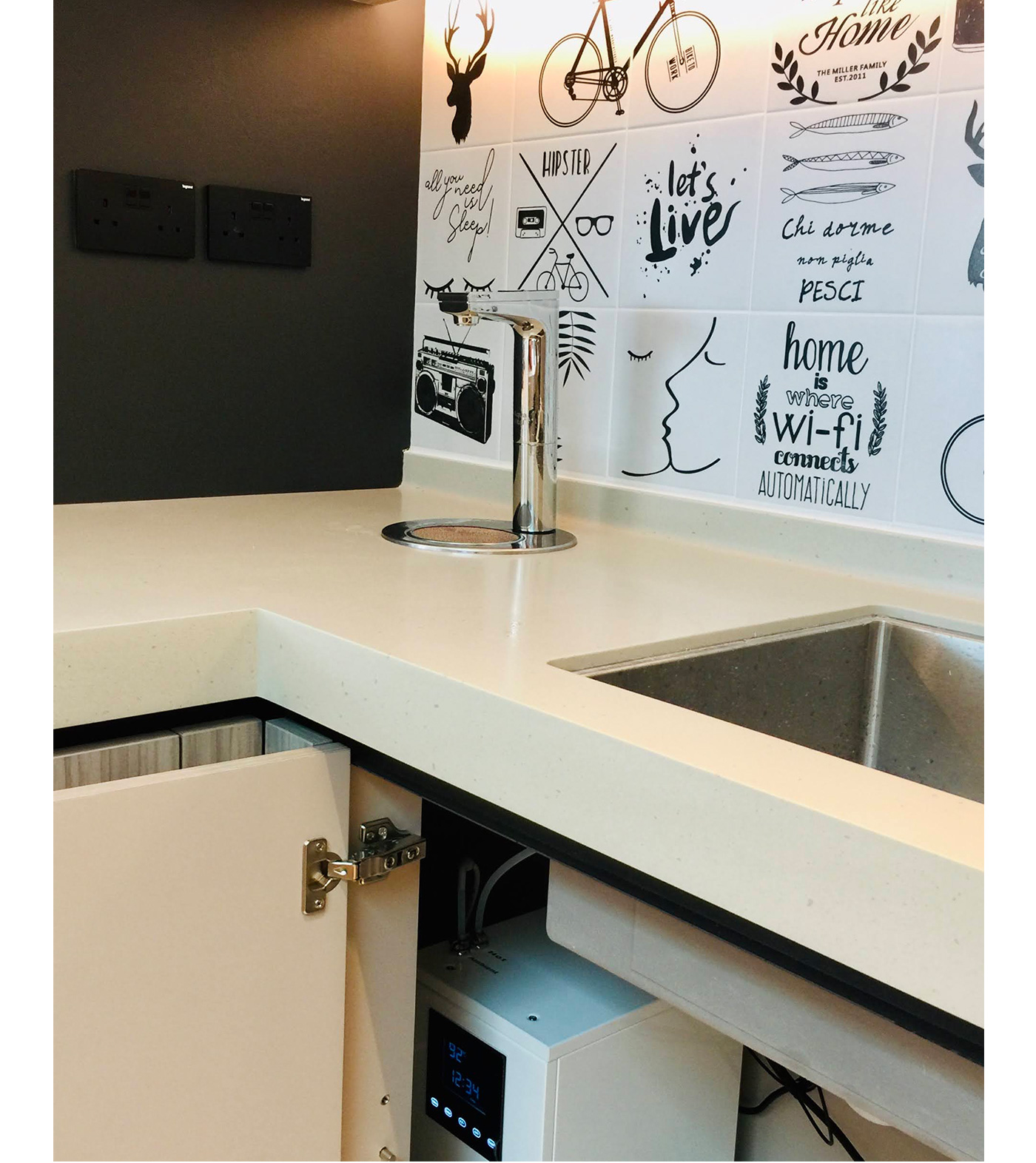

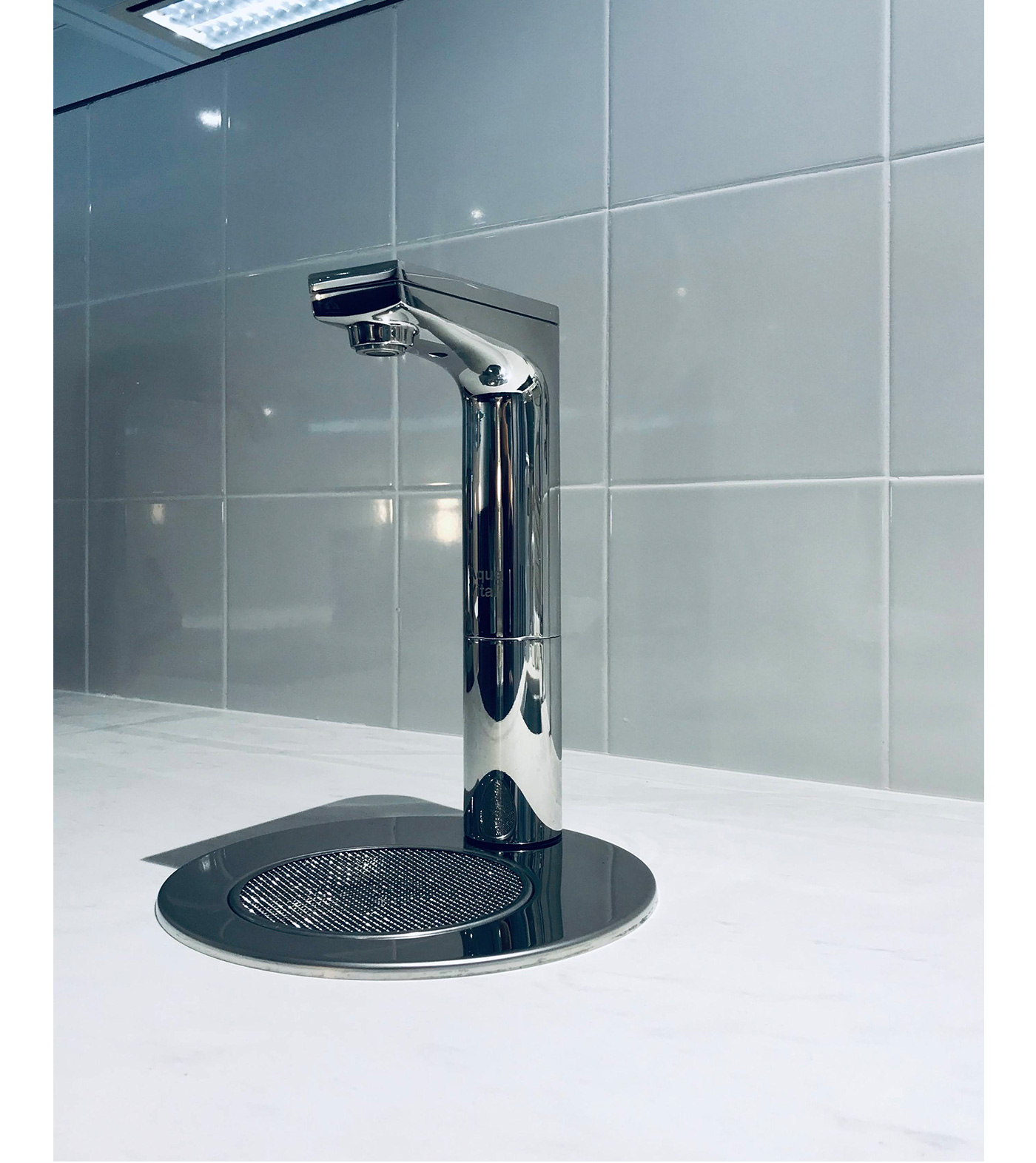

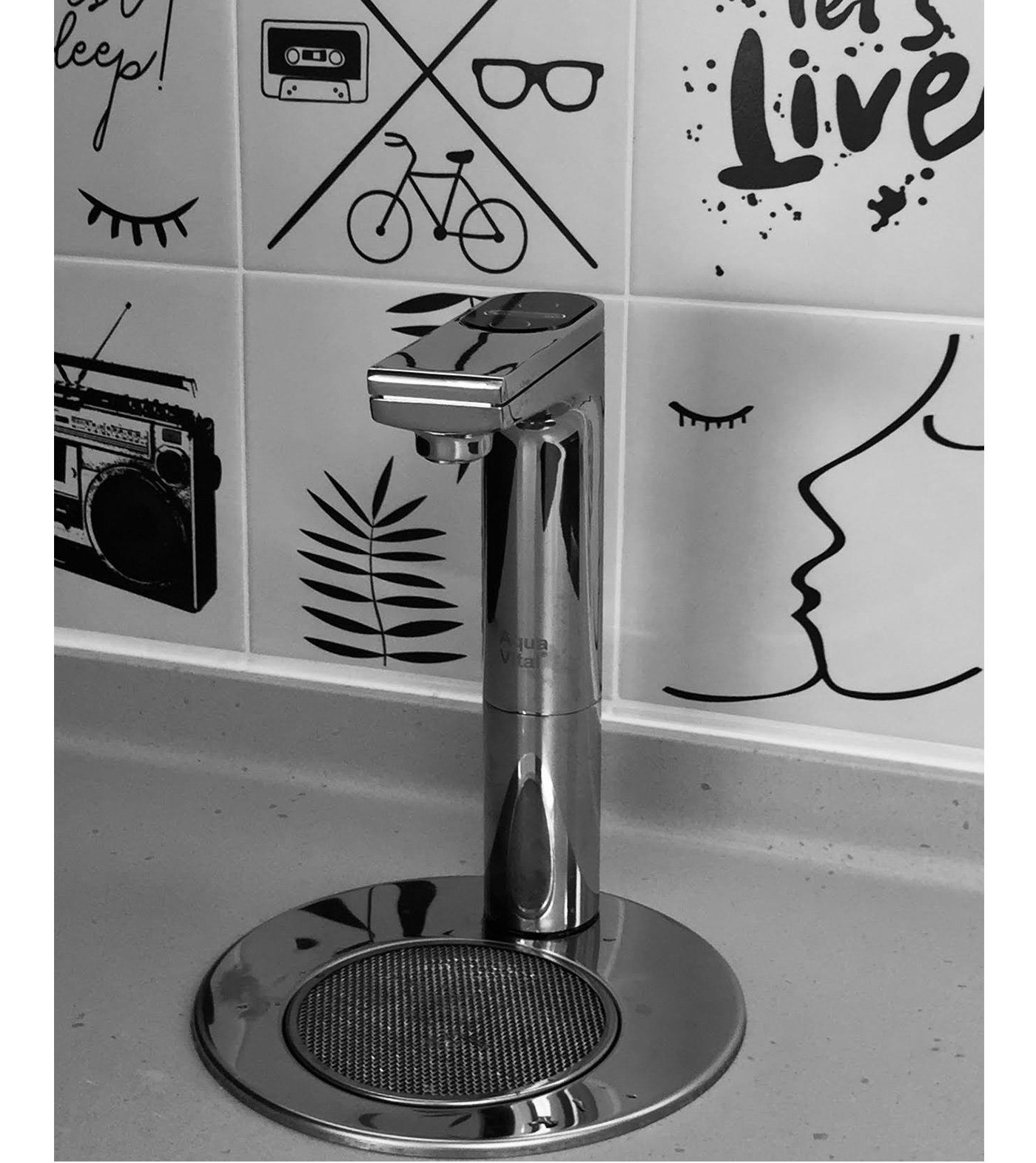

If you like tea and coffee, you'll love them even more with the BC-Tap in place. Whether in making coffee or tea, pure water brings you the best taste. With professional filtration system, the BC-Tap provides pure boiling & chilled water enabling the aroma of drinks to be more highlighted. Your kitchen feels like an awesome cafe, bringing you a deep sense of life.
W 55 x D 150 x H 270
W 230 x D 300 x H 400
AC 220V / 50 - 60 Hz / 1,550 W
Body made of Stainless Steel ( #304 )
Hairline Brushed Finish
Dimension : 55 ( W ) x 150 ( D ) x 270 ( H ) mm ( + / -5 )
Grade 1 Energy Efficiency Rating Label
Hot Tankmade of Stainless Steel ( #316 )
Casing made of Stainless Steel ( #430 )
Touch LCD control panel
Hot water Recovery Rate : 36 L / hr
Insulation : Styrofoam
Dimension : 230 ( W ) x 300 ( D ) x 400 ( H ) mm
Weight : 8.3 kg

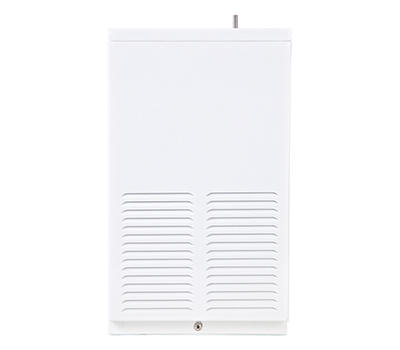

Casing made of Stainless Steel ( #430 )
Cold water Recovery Rate : 20L / hr
R-134a Refrigerant
Air-cooled
Dimension : 230 ( W ) x 300 ( D ) x 400 ( H ) mm
Weight : 13.8 kg
Stainless Steel ( #304 )
Dimension : Ø 218 x 78 ( H ) * mm -- * Tray base 6 mm from top of benchtop
Hole opening : Refer to the cutting template
Water Mains : 1 / 2" NPT
Water In : Stainless Steel Wire Braided Hose
Connecting Tube
Boiler to Faucet : Teflon ( Ø 8 mm )
Chiller to Faucet : Teflon ( Ø 8 mm )
Power Cord : UK13A
NF / 4-Stage Filters Nano Filtration ( NSF 42 & 53 Compliance )
1. Sediment Pre-Filter / 5 Microns
2. KX Carbon Block Filter / MMF-2710-F1-CBR
3. Hollow Fiber Membrane / 0.01 Micron
4. GAC Carbon Post Filter
Water Production Rate : 2 L per minute
Working Pressure : 20 - 80 psi
Boiler : AC 220V / 50 - 60 Hz / 1,550 W
Chiller : AC 220V / 50 - 60 Hz / 160 W
BA Model : ( Hot ) 4 L or 36 L / hr | ( Ambient ) 115 L / hr
BC Model : ( Hot ) 4 L or 36 L / hr | ( Chilled ) 2L or 20 L / hr
BA Model : ( Hot ) * 30°C - 100°C / ( Ambient ) Room Temperature
BC Model : ( Hot ) * 30°C - 100°C / ( Chilled ) 4°C - 10°C
* Adjustable from 30°C - 100°C
